Dan's Project:
Dan emailed me in the Summer of 2008 needing a crossover for his DIY speaker project.

We opted for the budget friendly crossover of the 1st order variety.  Dan was using  1x 10” Eosone Woofer - 1RD0002-2; 1x 5.5” Seas Midrange - MCA15RCY; 1x 1” Vifa Tweeter - XT25TG30-04.  X-over points were chosen at 400Hz and 3000Hz.

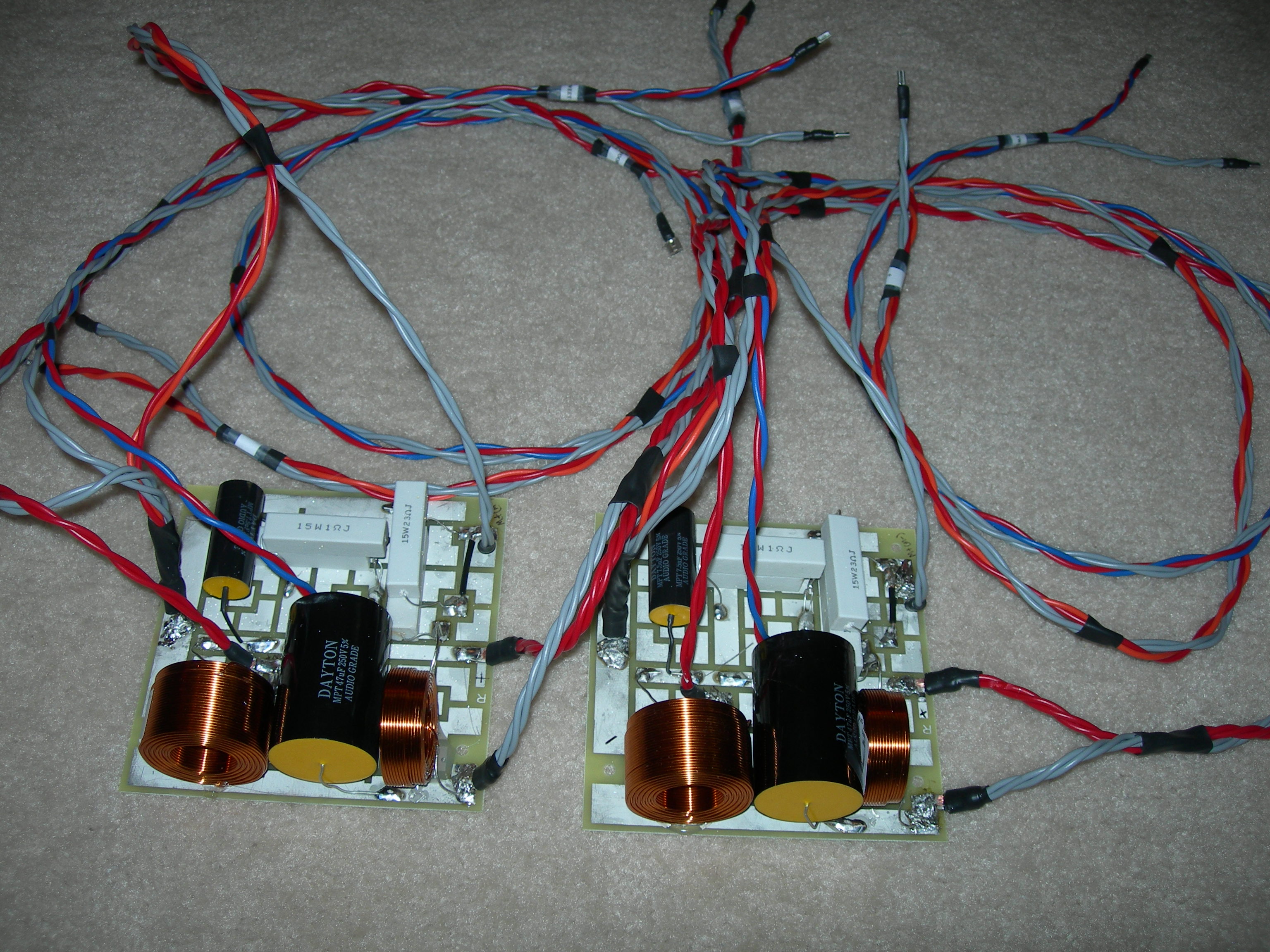

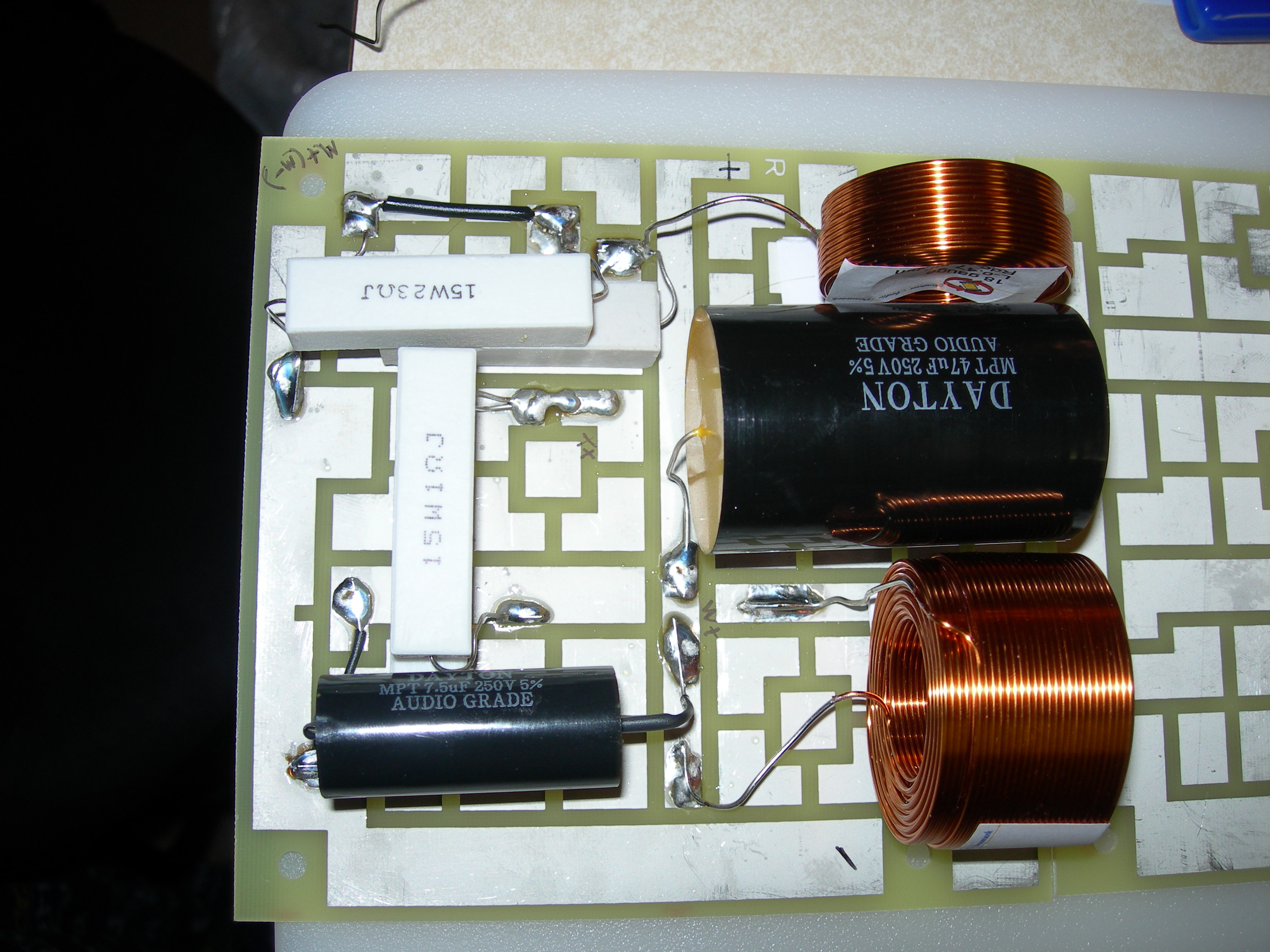

The x-overs were constructed using Jantzen 18awg coils, Dayton Poly caps and Dayton resistors.  Additionally all the internal wiring was constructed for Dan as well.

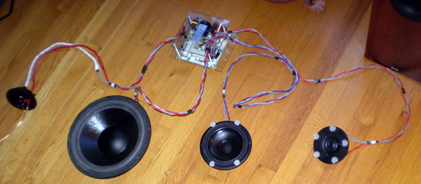

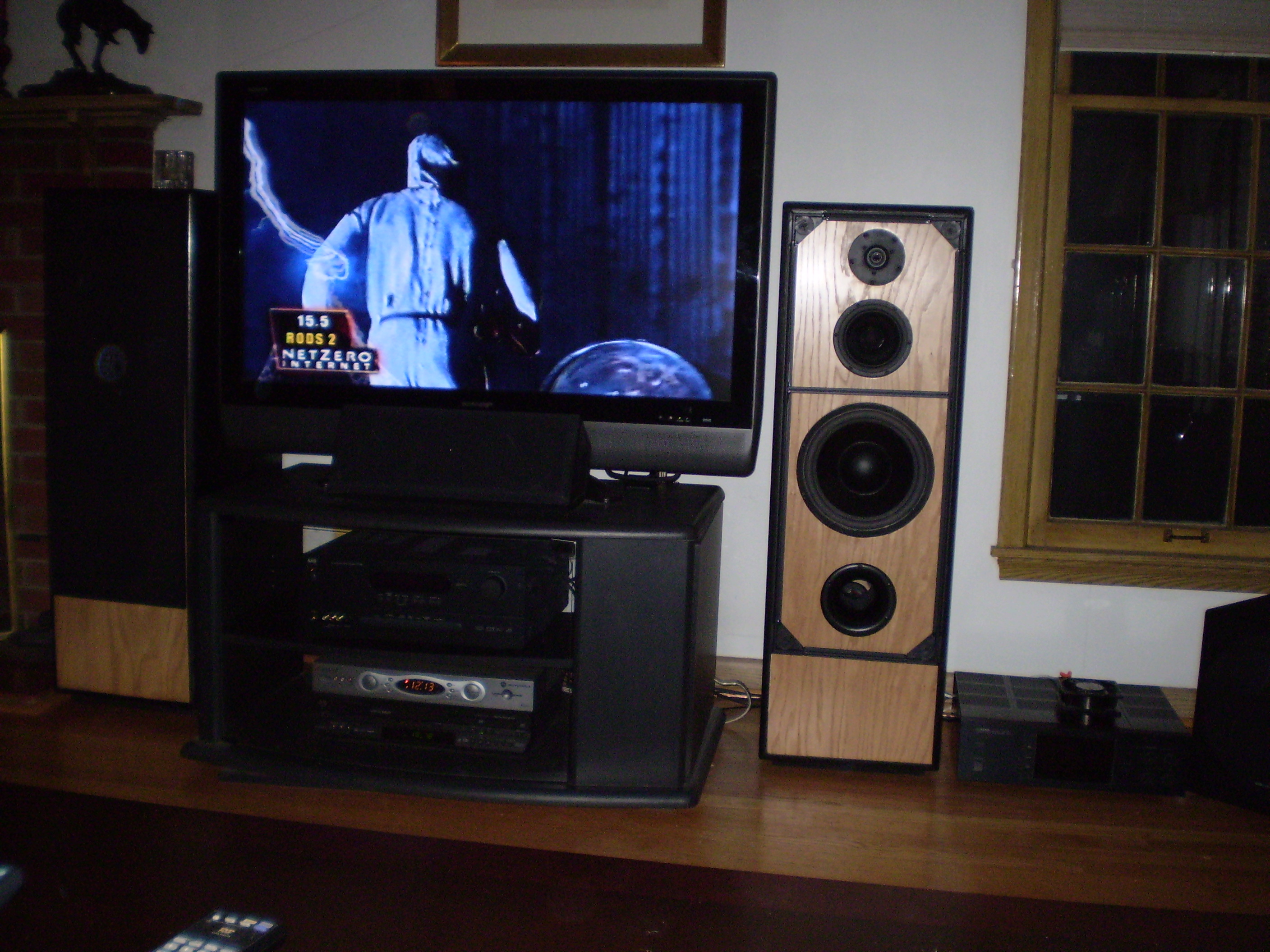

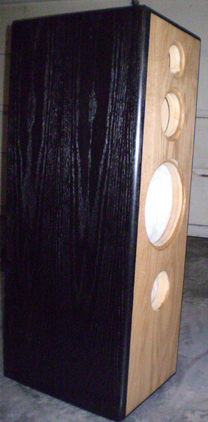

The final results you can see below. I also assisted Dan with his box volume, port size and tuning frequency.
